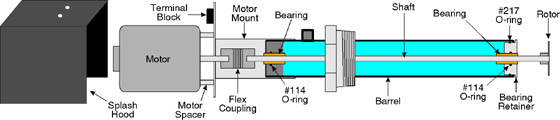

Sugar Consistency Monitor Sensor Spare Parts Diagram
| ITEM | PART# | DESCRIPTION | PRICE (US Dollars) |
| Barrel | 970C009 | Sensor/probe shaft barrel | $532.00 |
| Bearing | 970C012 | Sensor/probe bearing | $40.00 |
| Bearing Retainer | 970C029 | Sensor/probe inner bearing retainer | $150.00 |
| Circuit Board 24V | 970C038 | Circuit board 24V | $456.00 |
| Circuit Board 130V (Obsolete) | 970C003 | Circuit board 130V (Obsolete) Replace with 970C037 & 970C038 | N/A |
| Flex Coupling | 970C014 | Sensor/probe flex coupling with set screws | $92.00 |
| Front Panel Assembly | 970C004 | Front Panel Assembly | $363.00 |
| Meter (Digital) | 970C026 | Digital indicating meter for front panel | $160.00 |
| Motor 24V | 970C037 | Sensor/probe motor 24V (Bodine type 24A2BEPM) for use with serial #1020 & higher | $322.00 |
| Motor 130V | 970C007 | Sensor/probe motor 130V (Bodine type 24A2BEPM) for use with serial #1019 & lower | $295.00 |
| Motor NSH-12 (Obsolete) | 970C006 | Sensor/probe motor Bodine type NSH-12 (Replace with 970C007 & 970C032) | N/A |
| Motor Adaptor | 970C034 | Motor Adaptor for 24A2BEPM motor | $35.00 |
| Motor Bearing Bodine | 970C017 | Motor ball bearing for all Bodine motors (Bodine Z99038) | $32.00 |
| Motor Bearing Carter | 970C018 | Motor ball bearing (Obsolete - Carter C8008) | N/A |
| Motor Brush 130V Bodine F83 | 970C020 | Motor brush with spring for Bodine motor 130V(1/4" x 1/8") (F83) | $7.00 |
| Motor Brush 130V Bodine F83X | 970C021 | Motor brush with spring for Bodine motor 130V(1/4" x 3/16") (F83X) | $7.00 |
| Motor Brush 24V Bodine 49/ | 970C036 | Motor brush with spring for Bodine motor 24V(1/4" x 3/16") (49/) | $15.00 |
| Motor Brush | 970C019 | Motor brush with spring for Carter motor (Obsolete) | N/A |
| Motor Conversion Kit | 970C032 | Kit to convert 970-C with NSH-12 motor to use 24A2BEPM | $55.00 |
| Motor Mount | 970C010 | Sensor/probe motor mount | $300.00 |
| Motor Spacers | 970C011 | Sensor/probe motor spacers (set of 4) | $30.00 |
| O-Ring #114 | 970C022 | O-Ring Bearing Retainer #114 (5/8 x 13/16") | $3.00 |
| O-Ring #217 | 970C023 | O-Ring Barrel Seal #217 (1 3/16" x 1 7/16") | $3.00 |
| Potentiometer | 970C027 | 10k ohm potentiometer for front panel | $20.00 |
| Rotor | 970C015 | Sensor/probe rotor 1-3/4" | $66.00 |
| Rotor | 970C016 | Sensor/probe rotor 3" | $70.00 |
| Screws | 970C031 | Screws and washers for splash hood (2 of each) | $3.00 |
| Sensor | 970C002 | Sensor/probe unit | $1,437.00 |
| Set Screw | 970C024 | Set Screw 8-32 x 3/16" Spline Head SS | $1.00 |
| Shaft | 970C008 | Sensor/probe shaft | $62.00 |
| Splash Hood | 970C028 | Sensor/probe motor splash hood | $75.00 |
| Terminal Block | 970C013 | Sensor/probe terminal block | $12.00 |
| Transmitter 130V (Obsolete) | 970C001 | Transmitter for use with 130V motor. Replace with 970C039 & 970C037. | N/A |
| Transmitter 24V | 970C039 | Transmitter for use with 24V motor | $928.00 |
| Wrench | 970C030 | Spline head wrench | $4.00 |
| ZA-6 Kit | 970C005 | ZA-6 Kit for 715TQ conversion | N/A |
